Visionking Optics Thermal Night Vision Use MX-10160 Tubes New high-performance Head Mounted NVG
- Price：Negotiable
- Contact Supplier：
-
Product Detail
Product Description:

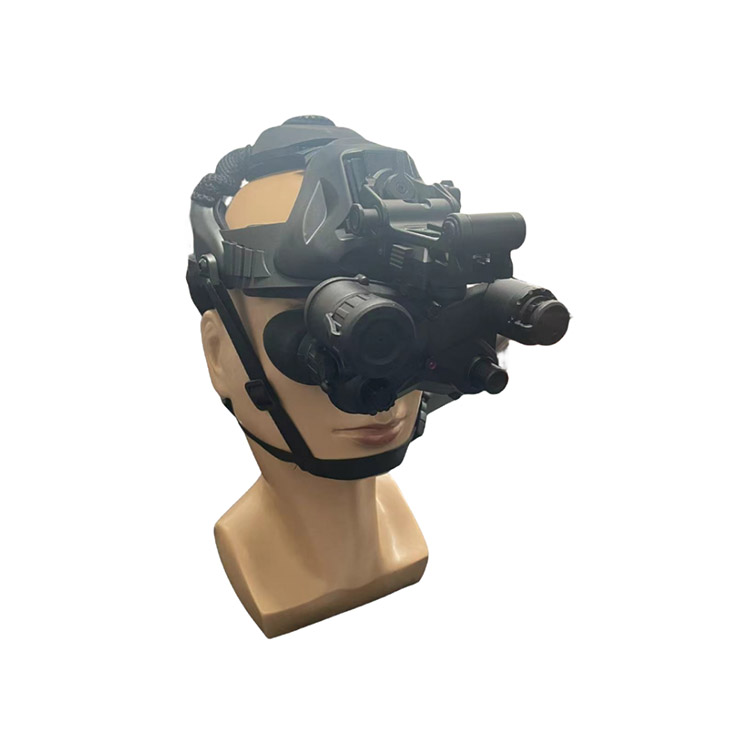

PVS-22pro is a high-performancehead mounted night vision binocular, an active head mounted night vision binocular . Low light PVS-22pro has the characteristics of super large field of view, high definition, no distortion, light weight, high strength .
Technical specifications:
|
MODEL |
PVS-22pro(Thermal night vision goggles) |
|
structure mode |
goggle |
|
Structural mode |
Arbitrary turn it over |
|
Battery type |
Lithium battery (cr123x1) / cr23x4 external battery box |
|
Power supply |
1.2-1.6/2.5-4.2V |
|
Installation |
Head mounted(standard FST helmet interface) |
|
control mode |
ON/IR/AUTO |
|
Over power consumption |
<0.1W /1.2W |
|
Battery capacity |
300-3200maH |
|
Battery life |
30-100H |
|
magnification |
1X |
|
FOV( °) |
>50° |
|
Parallelism of optical axis |
<0.5° |
|
IIT |
Gen2+/3 |
|
Lens system |
F1.18 22.5mm |
|
MTF |
120LP/mm |
|
Optical distortion |
1% Max |
|
Relative Illumination |
>75% |
|
coating |
Multilayer broadband coating |
|
Range of focus |
250mm-∞ |
|
Focus mode |
manual focus facility |
|
Distance of pupil |
30-35mm |
|
Eyepiece aperture |
9mm |
|
Range of visibility |
0 (+ / - 5 optional) |
|
Type of display |
OLED |
|
display resolution |
1280x720 |
|
Display image ratio |
80% |
|
Thermal image wavelength |
8-12uM |
|
Thermal image resolution |
384x288 |
|
Fusion mode |
Optical fusion |
|
IR |
850nm 20mW |
|
Operating temperature |
-40--+55℃ |
|
Relative temperature |
5%-95% |
|
Environment rating |
IP65/IP67 |
|
dimensions |
80x132x81 |
|
weight |
430G |
